If you’ve ever struggled with lifting heavy vehicles or equipment, you know how frustrating and time-consuming it can be. That’s where an air hydraulic floor jack comes in—designed to make your work faster, safer, and much easier.
Imagine being able to lift your car smoothly with just a simple push of a button, saving your strength and effort for what really matters. You’ll discover how this powerful tool can transform your garage or workshop. Ready to learn how to get the job done quickly and efficiently?
Keep reading to find out everything you need to know about air hydraulic floor jacks.

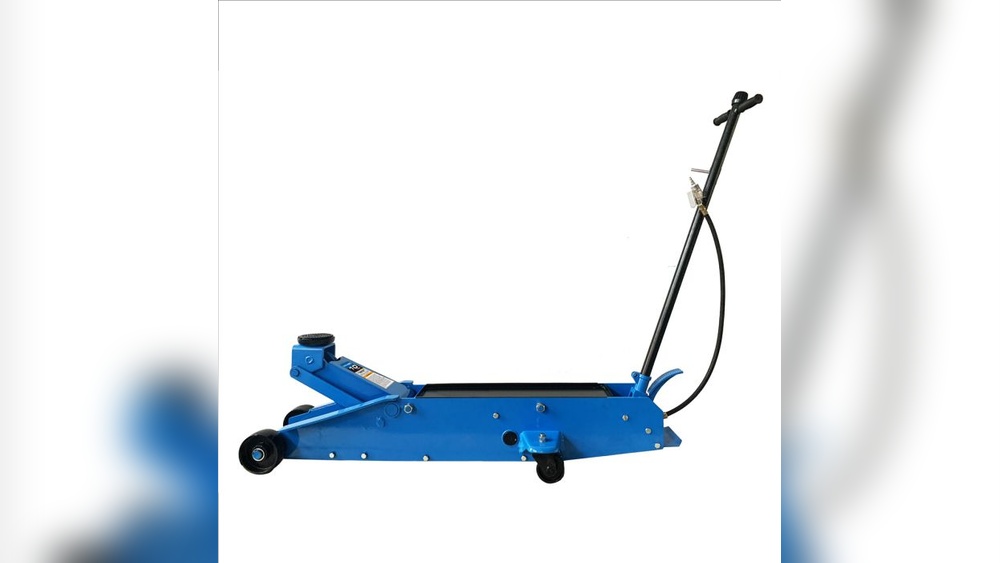

What Is An Air Hydraulic Floor Jack
An air hydraulic floor jack is a tool used to lift heavy objects safely. It helps raise vehicles or machinery off the ground for repairs or maintenance.
This jack uses both air pressure and hydraulic power. The combination makes lifting easier and faster than manual jacks.
How Does An Air Hydraulic Floor Jack Work?
The jack uses compressed air to push hydraulic fluid. This fluid moves a piston inside the jack.
The piston then lifts the jack’s arm. This arm raises the load smoothly and steadily.
Main Parts Of An Air Hydraulic Floor Jack
It has several key parts. These include the air inlet, hydraulic cylinder, piston, and lifting arm.
The air inlet connects to an air compressor. The compressor supplies the air needed to operate the jack.
Why Use An Air Hydraulic Floor Jack?
This jack saves time and effort. It requires less physical strength than a manual jack.
It is safer for lifting heavy vehicles or equipment. The air pressure provides steady, controlled lifting.
Credit: www.alltiresupply.com
Key Components And Design
The air hydraulic floor jack is a powerful tool for lifting heavy vehicles. Its design combines air pressure and hydraulic power to make lifting easier and faster. Understanding the key components helps you see how this tool works effectively and safely.
Each part plays a crucial role in the jack’s performance. Knowing these parts can help you maintain the jack and use it correctly.
Hydraulic CylinderThe hydraulic cylinder is the main lifting part. It uses hydraulic fluid to create pressure. This pressure pushes the piston up, lifting the load. The cylinder must be strong to handle heavy weights safely.
Air Compressor ConnectionThe air compressor connection supplies air pressure to the jack. This air pressure powers the hydraulic system. It reduces manual effort, making the lifting process faster and easier. A secure connection ensures steady air flow.
Pump Handle and Control ValveThe pump handle helps move hydraulic fluid inside the cylinder. The control valve releases or holds pressure. This valve controls the jack’s lifting and lowering actions. It offers smooth and safe operation during use.
Lifting Arm and SaddleThe lifting arm moves the saddle upward. The saddle supports the vehicle during lifting. It must be stable and wide enough to hold the load. A well-designed saddle prevents slipping and damage.
Base and WheelsThe base provides stability to the entire jack. It keeps the jack steady during lifting. Wheels allow easy movement of the jack across surfaces. Strong wheels help in positioning the jack under vehicles quickly.
How Air Hydraulic Jacks Work
Air hydraulic floor jacks use air pressure and hydraulic fluid to lift heavy objects. They make lifting easier and safer by combining two powerful forces.
The air pressure pushes a piston, which moves the hydraulic fluid. This fluid then pushes another piston to lift the jack’s arm. This process allows the jack to lift cars, trucks, and other heavy items with little effort.
Air Pressure Activation
An air compressor sends compressed air into the jack. This air creates pressure in a small chamber. The pressure pushes a piston inside the jack’s cylinder.
This piston movement starts the lifting process by pushing hydraulic fluid upward.
Hydraulic Fluid Movement
The hydraulic fluid transfers force from the piston to the lifting arm. Fluid moves through narrow tubes and valves inside the jack. This movement multiplies the force applied by the air pressure.
Hydraulic fluid helps lift heavy loads smoothly and evenly.
Lifting The Load
The hydraulic pressure pushes the main lifting arm upward. This arm raises the load placed on the jack. The design ensures steady and controlled lifting.
This system handles heavy weight without sudden drops or slips.
Releasing The Pressure
A release valve opens to let hydraulic fluid flow back. This reduces pressure inside the jack. The lifting arm slowly lowers the load to the ground.
Controlled release prevents damage and keeps the process safe.
Benefits Over Traditional Jacks
Air hydraulic floor jacks offer several benefits over traditional jacks. They make lifting heavy vehicles easier and safer. Their design uses air pressure, which reduces the effort needed. This makes them a popular choice for many mechanics and car owners.
These jacks improve work speed and reduce physical strain. They also provide more control and stability while lifting. Let’s explore some key advantages below.
Faster Lifting Speed
Air hydraulic jacks lift vehicles much faster than manual jacks. The air pressure power moves the jack quickly. This saves time during repairs or tire changes. Less waiting means more work can get done.
Less Physical Effort
Traditional jacks require a lot of hand pumping. Air hydraulic jacks need little physical effort. Users just activate the air pressure system. This reduces fatigue and strain on the body. Ideal for people who lift often.
Improved Safety And Stability
These jacks provide a stable base while lifting. Their design lowers the risk of slipping or tipping. Safety locks hold the vehicle securely in place. This helps avoid accidents during maintenance.
Durability And Long Life
Air hydraulic jacks are built with strong materials. They resist wear and tear better than traditional jacks. This means they last longer and need less repair. A good investment for regular use.
Versatility In Use
These jacks work well on different surfaces. They can handle various vehicle sizes and weights. Their adjustable features make them flexible for many tasks. Useful in garages, workshops, and at home.
Choosing The Right Jack For Your Needs
Choosing the right air hydraulic floor jack is important for safety and ease. The right jack fits your vehicle’s needs and your work style. Focus on key features before making a choice. This helps avoid problems and saves time.
Consider the weight, height, size, and build quality. Each factor affects how well the jack performs. Find one that matches your typical tasks and environment.
Weight Capacity
Weight capacity shows how much the jack can lift. Pick a jack that holds more than your vehicle’s weight. This ensures safety and stops damage. Too small a capacity can cause accidents or tool failure.
Lift Height
Lift height means how high the jack can raise your vehicle. Choose a jack that reaches the needed height for your tires or repairs. A jack that lifts too low won’t be useful. Too high might be bulky.
Portability
Portability matters if you move your jack often. Look for lightweight and compact designs. Wheels help move the jack easily. Portable jacks fit small garages or busy workshops well.
Durability
Durability tells how long the jack lasts. Strong materials and good build resist wear and tear. A durable jack saves money over time. Avoid cheap models that break quickly or leak air.
Step-by-step Safe Operation
Using an air hydraulic floor jack safely is important for your protection and the vehicle’s security. Follow each step carefully to avoid accidents. Understanding how to handle the jack properly helps you lift your vehicle without problems.
Preparing The Vehicle
Park the vehicle on a flat, hard surface. Apply the parking brake to stop movement. Place wheel chocks on the opposite side of the lift. Remove any loose objects near the vehicle. Check the jack’s condition before use. Clear the area around the lift point to avoid slips.
Positioning The Jack
Locate the vehicle’s recommended lift points. These are often found in the owner’s manual. Align the jack saddle directly under the lift point. Make sure the jack is stable and level on the ground. Avoid placing the jack on soft or uneven surfaces. Position the jack to avoid damage to the vehicle’s body.
Lifting Process
Connect the air supply to the jack. Slowly start lifting by activating the air valve. Lift the vehicle until the tire clears the ground. Do not rush the lifting process. Stop if you hear unusual sounds or see instability. Use jack stands for extra safety once lifted.
Lowering Safely
Remove any tools or obstacles from under the vehicle. Slowly release the air valve to lower the jack. Keep clear of the vehicle while lowering. Lower the vehicle gently until the tire touches the ground. Remove the jack completely once the vehicle is stable. Store the jack properly after use to keep it safe.
Common Safety Precautions
Using an air hydraulic floor jack can save time and effort during vehicle maintenance. Safety is very important while operating this tool. Following key precautions helps prevent accidents and damage. Always take safety seriously to protect yourself and your vehicle.
Using Jack Stands
Never rely only on the floor jack to hold a vehicle. Use jack stands to support the weight safely. Place stands under strong parts of the frame or axle. Make sure the vehicle is stable before working under it. Jack stands provide a steady and secure hold.
Avoiding Overloads
Check the jack’s weight limit before lifting any vehicle. Do not lift loads heavier than the jack’s capacity. Overloading can cause the jack to fail or collapse. Use a jack with the correct rating for your vehicle. Staying within weight limits keeps the job safe.
Inspecting Before Use
Always inspect the jack before each use. Look for leaks, cracks, or damaged parts. Check the air hose and connections for wear or damage. Test the jack in a safe area to ensure it works properly. Regular inspection prevents breakdowns and accidents.
Credit: tiresupplynetwork.com
Maintenance Tips For Longevity
Proper care extends the life of your air hydraulic floor jack. Regular maintenance keeps it working safely and smoothly. Simple steps help avoid costly repairs and improve performance. Follow these tips to protect your investment and ensure reliable use.
Regular Cleaning
Keep your floor jack free of dirt and dust. Wipe down the surface after each use. Use a clean cloth to remove grease and grime. Avoid water on hydraulic parts to prevent rust. Clean jacks work better and last longer.
Hydraulic Fluid Checks
Check the hydraulic fluid level often. Low fluid causes poor lifting and damage. Use the correct fluid type for your jack. Replace old or dirty fluid every six months. Proper fluid keeps the jack lifting smoothly and safely.
Seal And Hose Inspection
Inspect seals and hoses for cracks or leaks. Damaged parts reduce pressure and cause failure. Replace worn seals and hoses immediately. Check these parts every month to avoid breakdowns. Good seals and hoses keep the jack reliable and safe.
Troubleshooting Common Issues
Troubleshooting common issues with your air hydraulic floor jack helps keep it working well. Simple problems can stop it from lifting or cause leaks. Knowing how to spot and fix these issues saves time and money. Here are some common problems and easy ways to solve them.
Jack Not Lifting
If the jack does not lift, check the release valve. It might be open or loose. Tighten the valve gently and try again. Also, make sure the air supply is connected and working. Dirt or debris in the valve can block pressure. Clean the valve with a cloth and test the jack again.
Slow Lifting Speed
Slow lifting often means low air pressure. Check the air hose for leaks or kinks. These reduce air flow. The hydraulic fluid level might be low. Fill the tank with the right fluid type. Air bubbles inside the system also slow lifting. Bleed the jack to remove trapped air for faster operation.
Hydraulic Leaks
Hydraulic leaks happen when seals wear out or break. Look for wet spots or fluid pools under the jack. Replace damaged seals to stop leaks. Tighten loose fittings and bolts carefully. Using the correct hydraulic fluid prevents damage. Regularly inspect your jack to catch leaks early.
Credit: us.amazon.com
Top Brands And Models To Consider
Choosing the right air hydraulic floor jack makes lifting vehicles safer and easier. Quality matters. Reliable brands offer strong performance and good build quality. This section highlights top brands and models to consider for your garage or workshop.
Each brand has unique features. Some focus on power, others on durability or ease of use. Understanding these differences helps pick a jack that fits your needs.
Sunex Air Hydraulic Floor Jack
Sunex is known for durable tools. Their air hydraulic floor jacks have high lifting capacity. They feature fast lifting speed and smooth operation. Many models include a safety valve to prevent overload. Sunex jacks work well in professional settings and home garages.
Arcan Air Hydraulic Floor Jack
Arcan offers strong, reliable jacks with solid construction. Their products have a wide lifting range and low profile design. This brand focuses on user safety with built-in overload protection. Arcan jacks come with heavy-duty wheels for easy movement.
Powerbuilt Air Hydraulic Floor Jack
Powerbuilt provides budget-friendly options with good quality. Their air hydraulic jacks have quick lifting action and steady stability. These jacks often include a long handle for better leverage. They are ideal for occasional use and small vehicles.
Blackhawk Air Hydraulic Floor Jack
Blackhawk jacks offer high lifting power and smooth control. They come with a strong steel frame and large saddles. Many models have dual pistons for faster lifting. Blackhawk products suit both professional mechanics and car enthusiasts.
Frequently Asked Questions
What Is An Air Hydraulic Floor Jack?
An air hydraulic floor jack combines air pressure and hydraulic power. It lifts heavy vehicles smoothly and safely. This jack is faster and requires less effort than manual jacks. It’s ideal for workshops and home garages.
How Does An Air Hydraulic Floor Jack Work?
It uses compressed air to activate a hydraulic piston. The piston raises the lifting arm smoothly. This mechanism provides consistent lifting power. It requires minimal physical effort. The jack is designed for easy and efficient vehicle lifting.
What Are The Benefits Of An Air Hydraulic Floor Jack?
This jack offers quick and effortless lifting. It improves safety with stable support. Its dual air and hydraulic system enhances efficiency. It reduces strain compared to manual jacks. It’s durable and perfect for heavy-duty use.
Can An Air Hydraulic Floor Jack Lift Heavy Vehicles?
Yes, air hydraulic floor jacks can lift heavy vehicles. Their lifting capacity varies by model, often exceeding 3 tons. Always check the jack’s maximum load rating. Use the jack on level surfaces for safety. Follow manufacturer guidelines for best results.
Conclusion
An air hydraulic floor jack makes lifting heavy objects easier and safer. It saves time and effort in many tasks. This tool suits both beginners and experienced users. Its strong design supports heavy loads without strain. Regular use helps maintain vehicles and equipment smoothly.
Choose one that fits your needs and budget well. Keep safety in mind during every use. This jack can be a valuable addition to your workshop. Simple to operate, it offers reliable performance every time.
